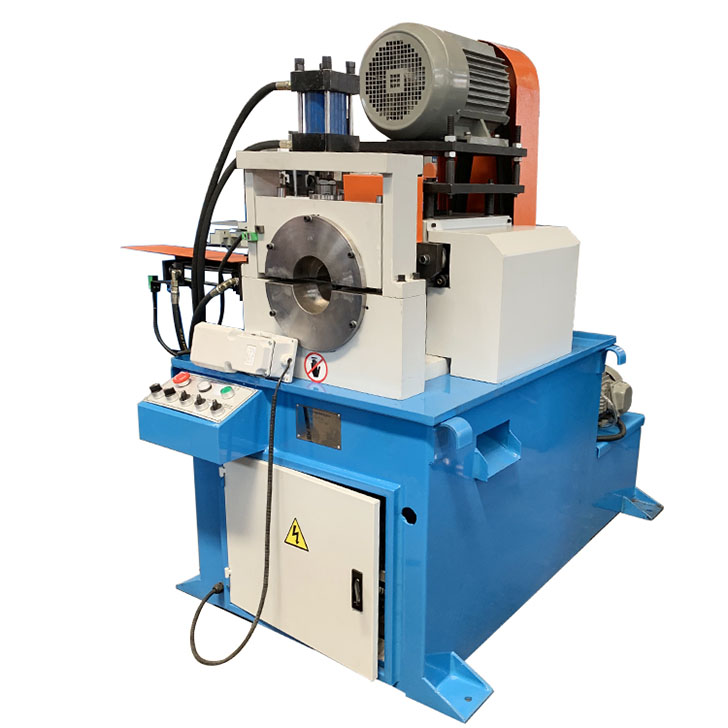

Heavy Duty Tube Chamfering Machine


Heavy Duty Tube Chamfering Machine
Heavy Duty Tube Chamfering Machine

CJ-230 Chamfering Machines

The CJ-230 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 230mm OD"
"Enhance your metalworking capabilities with the CJ-230 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 230mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects."

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Paremeters

Model

CJ-230

Type

Hydraulic Drive

Pipe Diameter

30-230mm

Bar Diameter

5-35mm

Work Length

≥80mm

Work accuracy

±0.1mm

Work Speed

4-10s/pcs

Machine Motor

5.5kw

Work Pressure

MPA 6-8KG

Weight

700KG

Dimension

130*150*160cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc


Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
