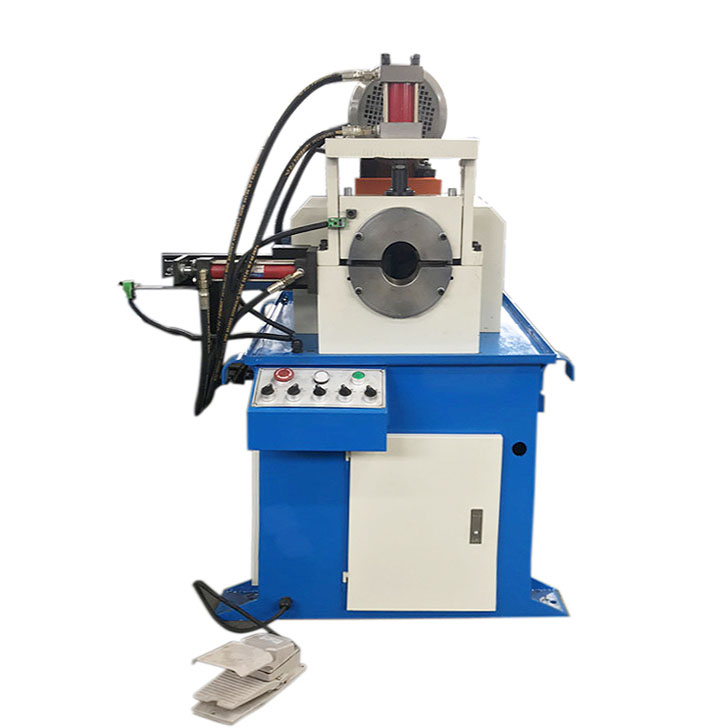

Pipe Single Head Chamfering Machine


Pipe Single Head Chamfering Machine
Pipe Single Head Chamfering Machine

CJ-120 Tube End Chamfering Machine

The CJ-120 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 120mm OD"
"Enhance your metalworking capabilities with the CJ-120 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 120mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects."

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Paremeters


Model

CJ-120

Type

Pneumatic/Hydraulic Drive

Pipe Diameter

8-120mm

Bar Diameter

5-35mm

Work Length

≥30mm

Work accuracy

±0.1mm

Work Speed

3-5s/pcs

Machine Motor

3kw

Work Pressure

MPA 6-8KG

Weight

400KG

Dimension

120*140*150cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
