Tube Single End Chamfering Machine, China Factory Price
Tube processing machine

Tube Single End Chamfering Machine

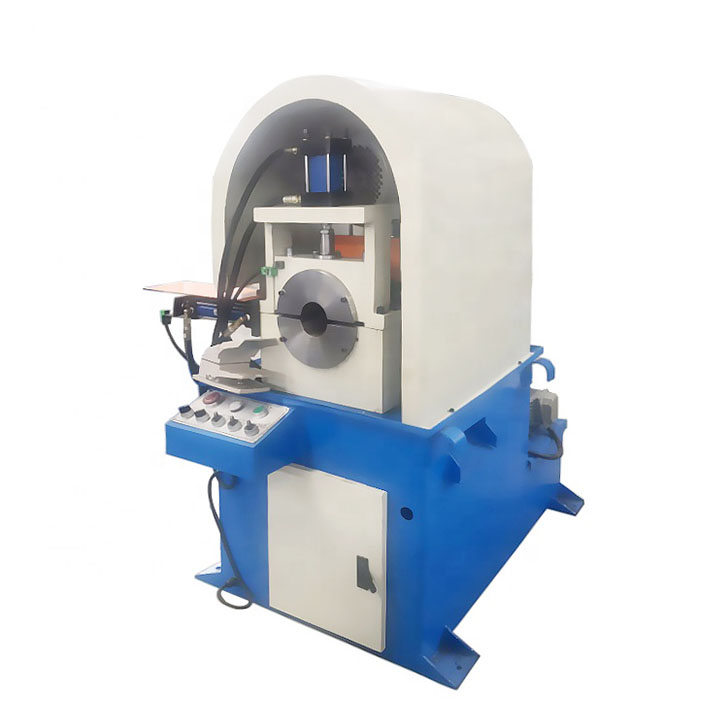

CJ-150 Chamfering Machine With Cover

The CJ-150 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 150mm OD"
"Enhance your metalworking capabilities with the CJ-150 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 150mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects."

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

Paremeters


Model

CJ-150

Type

Pneumatic/Hydraulic Drive

Pipe Diameter

20-150mm

Bar Diameter

5-35mm

Work Length

≥50mm

Work accuracy

±0.1mm

Work Speed

3-5s/pcs

Machine Motor

3kw

Work Pressure

MPA 6-8KG

Weight

450KG

Dimension

120*140*155cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
