Small Pipe Chamfering Machine


Small Pipe Chamfering Machine
Small Pipe Chamfering Machine

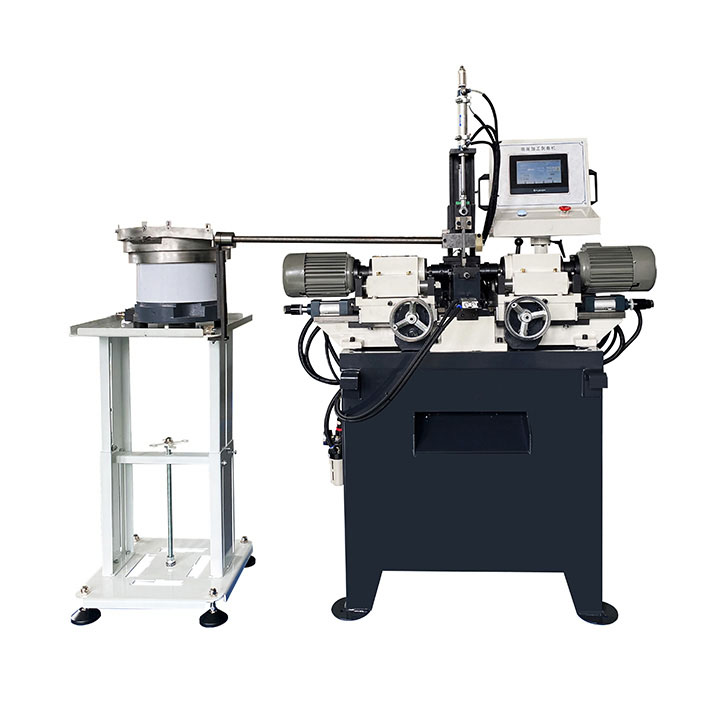

CJ-30 Automatic Chamfering Machine

The CJ-30 Automatic Chamfering Machine: A High-Precision Solution for Short Length And Small OD Tube Chamfering

The CJ-30 chamfering machine stands out in the industry for its precision in chamfering tubes with short working lengths ranging from 10 mm to 80 mm and an outer diameter (OD) of 30mm. This machine is especially designed for businesses requiring high-efficiency and accuracy in tube processing.

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Parameters

Model

CJ-30

Type

With/Without Feeding Bowl

Pipe Diameter

10-30mm

Work Length

10-80mm(custom)

Work accuracy

±0.05mm

Work Speed

2-4s/pcs

Machine Motor

075kw/1.1kw

Work Pressure

MPA 6-8KG

Weight

300kg

Dimension

110*100*140cm

Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc
